Real Manufacturing Case

Precision 45# Steel Threaded Component - 10,000 Piece Production Batch

A real anonymous DXSCNC CNC turning case for a 10,000-piece batch of precision 45# steel threaded cylindrical components with a drawing-defined +/-0.01 mm critical tolerance requirement.

Request a Quote Send Drawings for Review
Precision CNC turned 45# steel component with external and internal threads

Confidentiality Note

This page uses DXSCNC-owned project photos and approved public production facts. The only public customer reference is UK customer (anonymous). Customer name, drawing number, purchase-order information, order value, application, exact dimensions, inspection records and other confidential technical details are not published or inferred.

Introduction

This production batch involved a precision threaded cylindrical component made from 45# steel by CNC turning. The component combines external and internal threaded areas, stepped diameters, shoulders, reliefs, an internal bore and a flatted end feature.

At 10,000 pieces, the main engineering concern was not producing one conforming part. It was maintaining a stable machining and inspection approach as tools wore and production continued through the batch.

Project Overview

Page typeReal Manufacturing Case Study
CustomerUK customer (anonymous)
ComponentPrecision threaded cylindrical component
Material45# steel
Quantity10,000 pcs
Main processCNC turning
Critical tolerance requirement+/-0.01 mm on drawing-defined critical features
Production typeHigh-volume production batch
Public evidenceFinished-component and feature-detail photos supplied by DXSCNC

Real Production Photos

These photos are from the approved DXSCNC project image set. Their original wood background and visible machining condition are retained. Web versions were converted to WebP and compressed without changing the product geometry or presenting substitute images as production evidence.

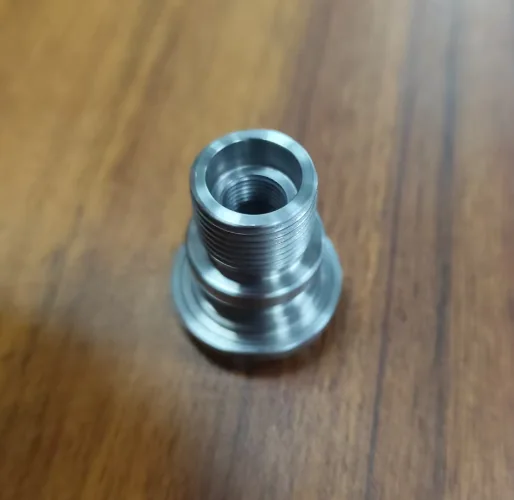

External thread detail on precision steel turned component
Close view of the external thread, internal thread and stepped cylindrical features on the finished component.

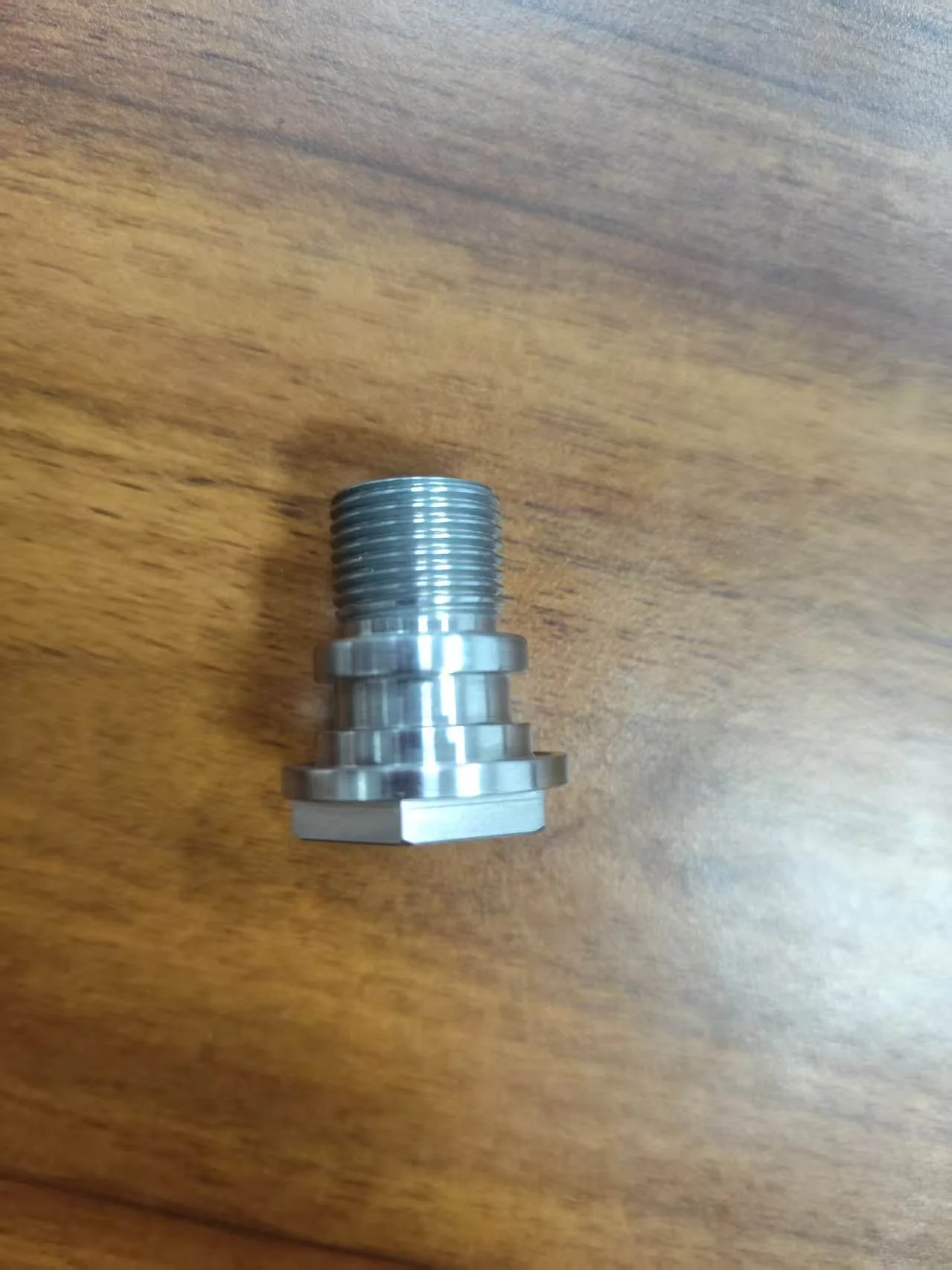

CNC turned 45 steel production component
Side view showing the external thread, turned shoulders, reliefs and flatted end feature.

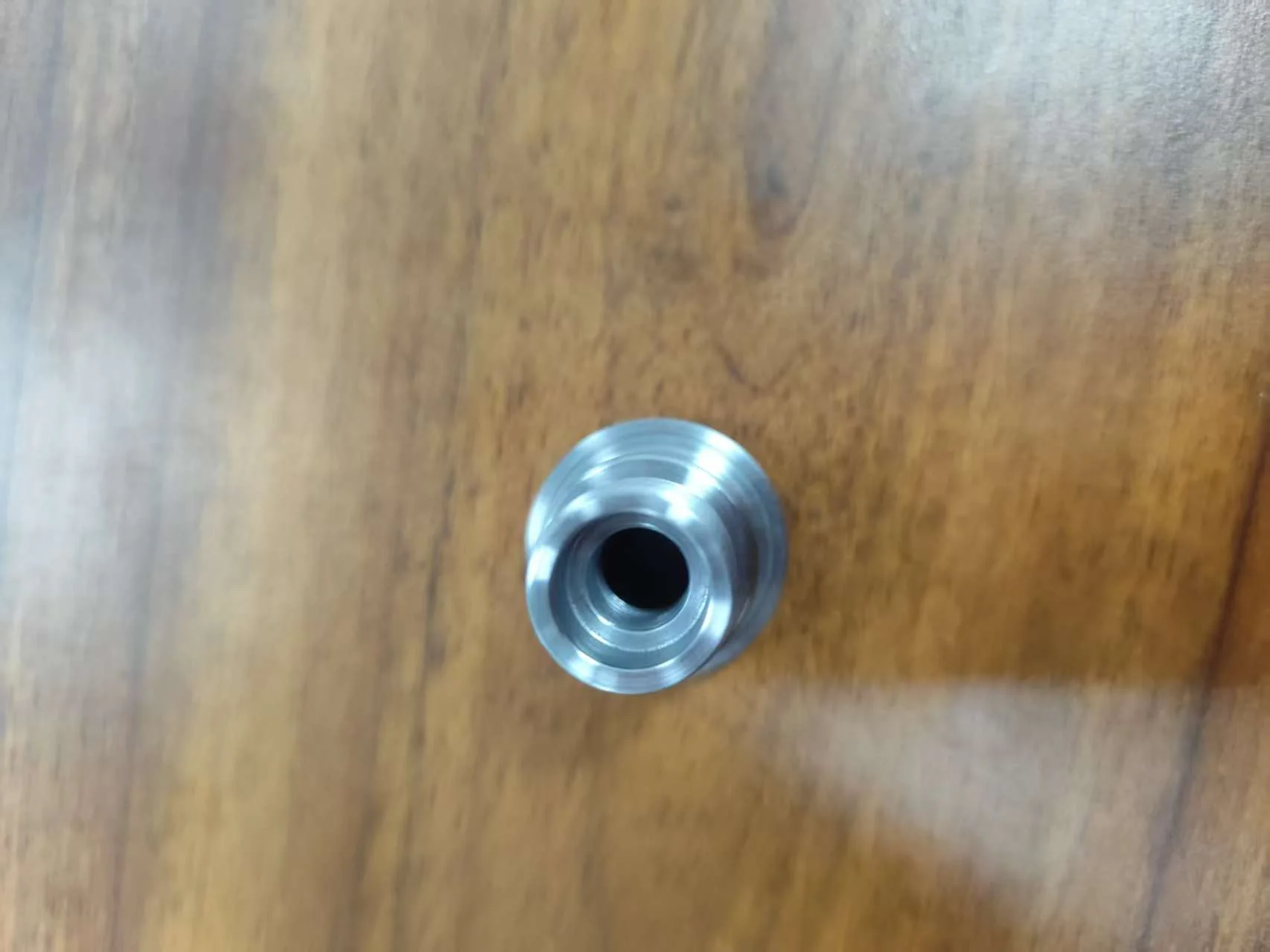

Internal bore feature of precision turned steel component
End view of the internal bore and thread-entry area used for dimensional and edge-condition review.

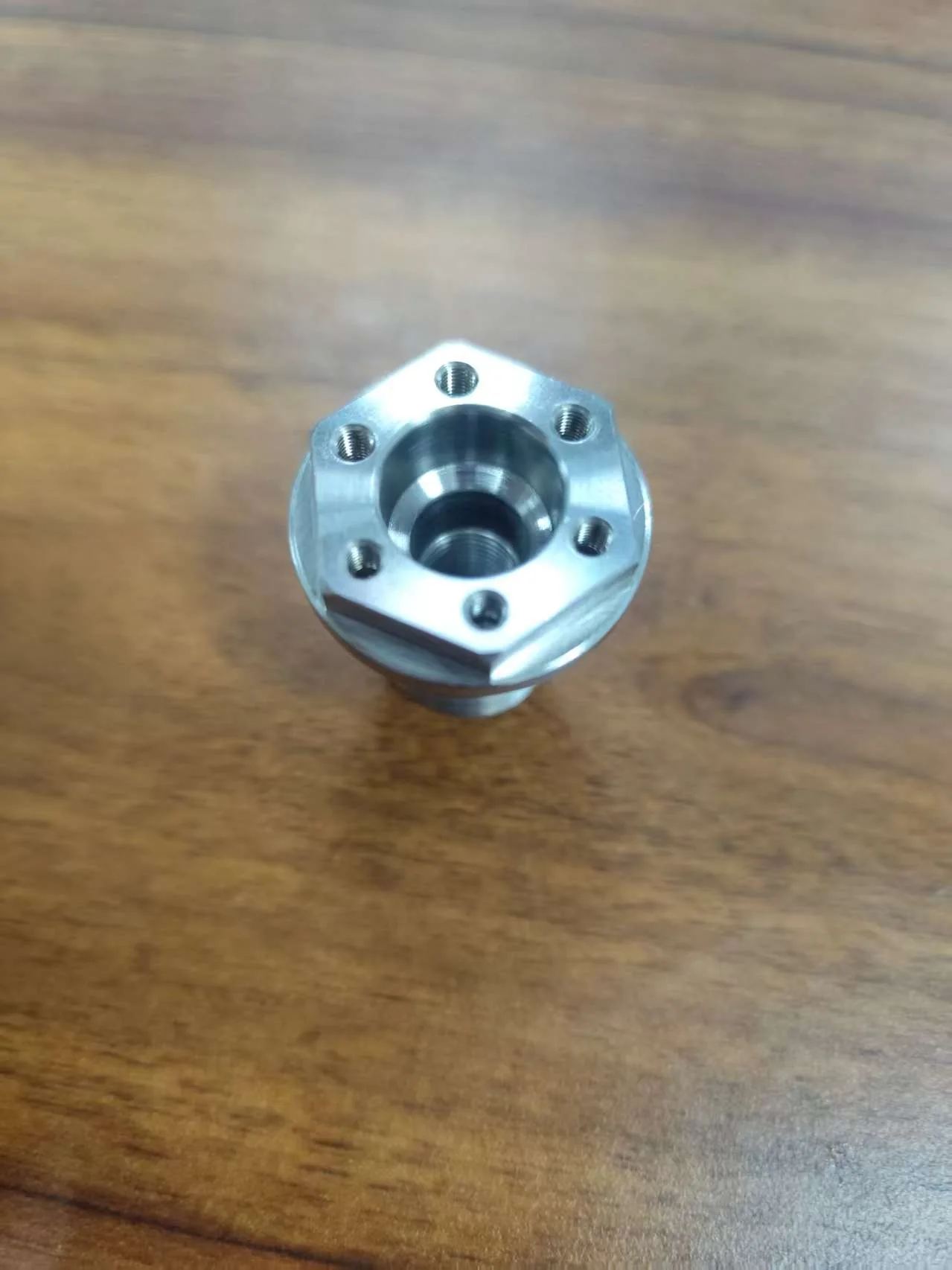

CNC turned steel component with machined bores and threaded holes
Feature-side view from the approved production image set showing machined bores and threaded-hole details.

Manufacturing Challenge

The confirmed requirement included drawing-defined critical tolerances down to +/-0.01 mm across a 10,000-piece production batch. Long-run production can be affected by tool wear, cutting-condition drift, material variation, workholding repeatability and measurement consistency.

The machining plan therefore had to treat thread condition, stepped diameters, shoulders, reliefs, the internal bore and the flatted feature as controlled production characteristics rather than isolated shapes.

Batch-control risks

  • Tool wear across a long production run
  • Workholding repeatability
  • Thread-form consistency
  • Stepped-diameter and shoulder position
  • Bore and external-feature relationship
  • Measurement consistency through the batch

Machining Approach

Drawing review

Identify the exact critical features, tolerance basis, thread callouts, functional datums, burr requirements and inspection needs before production.

Stable workholding

Use a repeatable clamping reference that supports the turned diameters, bore, shoulders and flatted end without introducing avoidable location variation.

Controlled turning sequence

Sequence facing, OD turning, bore work, threading, shoulders and reliefs to protect the drawing-defined feature relationships.

Tool-condition control

Monitor cutting-edge condition and replace or compensate tools before wear causes critical dimensions or thread form to move outside the approved control plan.

Dimensional monitoring

Check critical features at the agreed production intervals using methods suitable for the drawing tolerance and geometry.

Final review and packing

Review thread condition, burrs, surface condition and agreed dimensional records before protected packing.

Key Features Controlled

  • External thread form and entry condition
  • Internal thread and bore relationship
  • Stepped outside diameters
  • Shoulder locations
  • Reliefs and transition areas
  • Flatted end feature
  • Overall and feature-to-feature lengths
  • Burr and edge condition on functional areas

Relationship review

Drawing review should connect the thread, bore, stepped diameters, shoulders and flatted feature to the applicable datum and functional requirements instead of treating each feature separately.

Quality Control Considerations

The approved public project data confirms the 10,000-piece quantity and a +/-0.01 mm requirement for drawing-defined critical features. It does not publish the customer's inspection report, gauge list, sampling frequency, process-capability values or rejection data.

For this component type, inspection planning should cover critical outside diameters, bore dimensions, thread fit, shoulder and length relationships, flatted-feature geometry, burr condition and visible surface condition. The inspection method and frequency should be agreed from the drawing, feature geometry, tolerance and reporting requirements.

Inspection focus

  • Critical OD dimensions
  • Internal bore size
  • External and internal thread fit
  • Shoulder and step positions
  • Flat and end-feature geometry
  • Burr and surface condition
  • Production monitoring records as agreed

Surface Treatment / Packing

No surface treatment has been approved for public disclosure for this case. The photographs show the supplied finished components, but appearance alone is not used to claim plating, black oxide, passivation or another treatment.

The project-specific packing method is also not public. For comparable threaded steel components, packing review should protect threads, bores, shoulders and finished surfaces from impact, corrosion exposure and part-to-part contact during shipment.

Production Result

The 10,000-piece production batch was completed. This real anonymous case documents DXSCNC experience with high-volume CNC turning, precision 45# steel components, internal and external threaded features and repeat production control.

The page does not publish or imply a specific yield, rejection rate, delivery period, process-capability value, inspection result or repeat-order outcome because those records are not approved for public release.

Engineering Takeaway

A high-volume threaded steel part should not be quoted from material, diameter and quantity alone. Buyers should identify which dimensions are truly critical, how threads will be accepted, which datums control feature relationships, and what monitoring or reporting is required during production.

For a tolerance such as +/-0.01 mm, feasibility depends on the specific feature, material condition, geometry, workholding, tool access, production quantity and inspection method. DXSCNC reviews these conditions from the released drawing before quotation.

Buyer focus

  • Critical-feature identification
  • Datum and fit requirements
  • Complete thread callouts
  • Tolerance feasibility
  • Inspection and reporting needs
  • Protected packing requirements

RFQ Checklist

  • 2D drawing
  • 3D STEP model if available
  • 45# steel material specification and delivery condition
  • Quantity and repeat-demand forecast
  • Critical tolerances and datum references
  • Internal and external thread standards
  • Heat-treatment or surface-treatment requirements
  • Burr and edge requirements
  • Inspection method and report needs
  • Packing and target-delivery notes

Send drawings for review

DXSCNC will review machining range, workholding, tool-wear risk, tolerance feasibility, thread inspection and batch-control needs before quoting.

Send Drawings for Review

Related Pages

FAQ

Can DXSCNC machine 45# steel threaded components?

Yes. DXSCNC can review drawing-based 45# steel components for CNC turning, internal and external threads, bores, shoulders, reliefs, tolerance feasibility, inspection and batch-control requirements.

Can DXSCNC maintain +/-0.01 mm on a high-volume CNC turning batch?

Selected critical features may be reviewed for +/-0.01 mm requirements, but feasibility depends on material condition, geometry, workholding, tool access, production quantity and inspection method. It is not a blanket tolerance guarantee for every dimension.

How are high-volume turned parts inspected?

Inspection focus and frequency are agreed from the drawing and production requirements. The selected method should match the feature geometry, tolerance and reporting requirements.

What should buyers provide for a similar RFQ?

Provide the 2D drawing, 3D STEP model if available, 45# steel specification and delivery condition, quantity, critical tolerances, datum references, thread callouts, finishing requirements, inspection notes and packing requirements.
